What is Unstructured Data?
Think of unstructured data as conversations overheard in a crowd—rich in information but messy, unfiltered, and not readily sorted into neat little boxes. It’s the kind of data that doesn’t fit into traditional databases.
Where Does Unstructured Data Come From?
- Sensor logs (e.g., JSON, XML files)
- Video feeds and images from surveillance or drones
- Audio streams
- Free-text maintenance logs
- Device-generated alerts or payloads in nested formats
Common Formats of Unstructured Data
- JSON
- XML
- CSV with variable columns
- Audio/Video codecs
- PDFs, DOCs
What Does Unstructured Data Look Like?
{
"device_id": "AC1234",
"timestamp": "2025-05-20T10:15:00Z",
"metrics": {
"temperature": 78.4,
"vibration": {
"x": 0.2, "y": 0.3, "z": 0.1
},
"status": "nominal"
},
"notes": "Slight vibration spike noted."
}This is raw, real-world data-dense, layered, and full of context, but to most traditional systems, it’s unreadable gibberish.

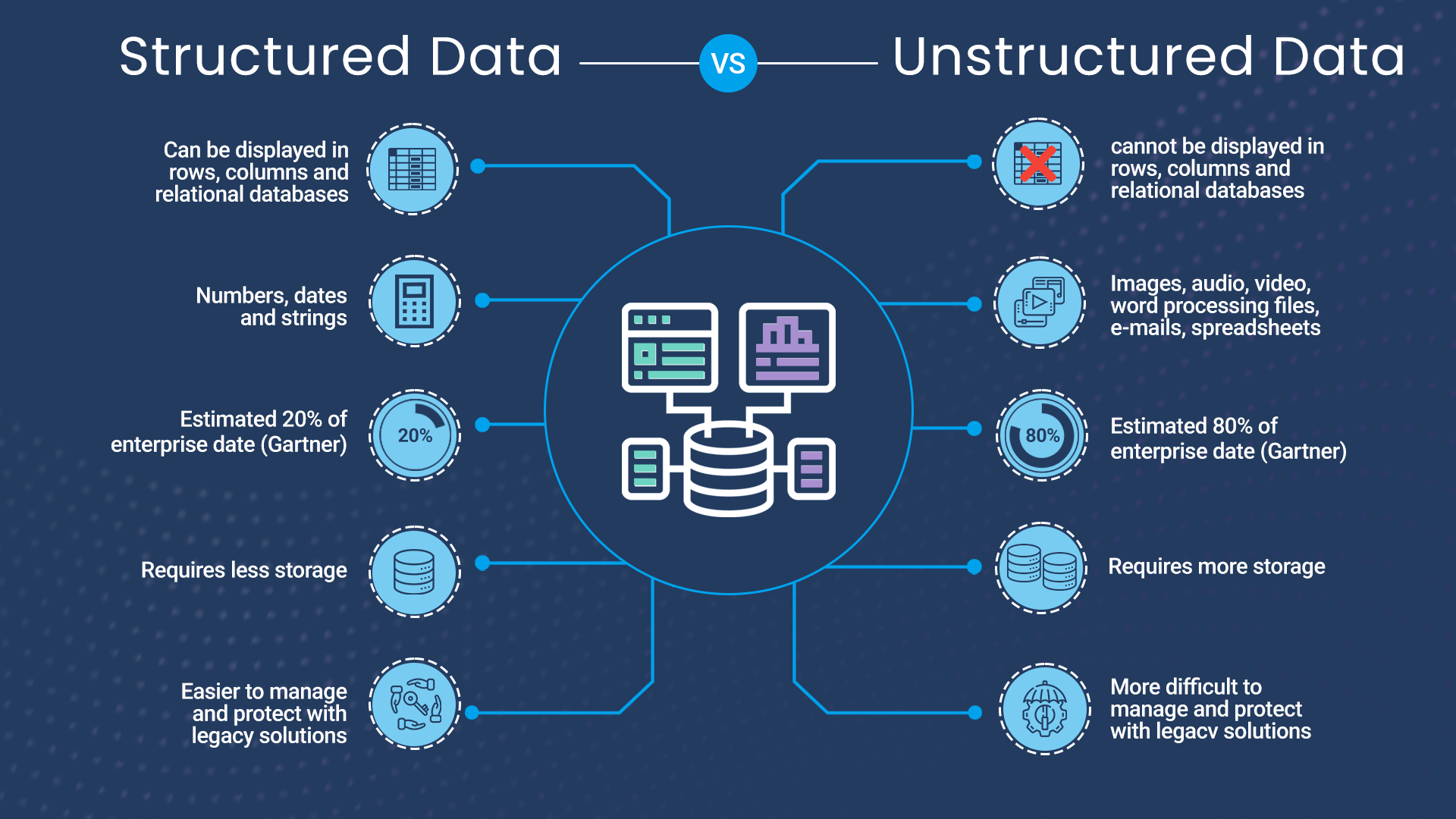

What is Structured Data?
On the flip side, structured data is like a spreadsheet—clean, tidy, and formatted to perfection. Rows and columns. Numbers where you expect them. Dates in the right format. This type of data is easily stored in relational databases and is accessible using SQL.
Common Sources
- ERP systems
- CRM databases
- Production control systems
- Inventory management platforms
Example
| Device ID | Timestamp | Temperature | Vibration_X | Vibration_Y | Vibration_Z | Status |
| AC1234 | 2025-05-20 10:15:00 | 78.4 | 0.2 | 0.3 | 0.1 | nominal |
But structured data like this doesn’t happen by accident. It’s often born from raw, unstructured feeds that go through rigorous transformation.
From Chaos to Clarity: Structuring Unstructured IoT Data
Unstructured JSON Input:
{
"device_id": "MOTOR_001",
"timestamp": "2025-05-20T14:35:12Z",
"readings": {
"temperature_c": 74.3,
"vibration": {
"x_axis": 0.23,
"y_axis": 0.19,
"z_axis": 0.27
},
"rpm": 1450,
"status": "ok"
},
"location": {
"lat": 35.7796,
"long": -78.6382
},
"notes": "Slight temp increase; monitor closely."
}With the right processing—say, a Python script or cloud-based ETL tool—this gets flattened into a structured output:
| Device ID | Timestamp | Temperature c | vibration_x | vibration_y | vibration_z | rpm | Status | Lat | Long | Notes |
| MOTOR_001 | 2025-05-20 14:35:12 | 74.3 | 0.23 | 0.19 | 0.27 | 1450 | ok | 35.7796 | -78.6382 | Slight temp increase; monitor… |
This transformation process flattens and enriches the data, making it accessible and actionable.
That previously unreadable JSON is now transformed into structured data that can be seamlessly integrated with reporting and analytics systems. Using ETL (Extract, Transform, Load) tools such as Python, Azure Data Factory, or AWS Glue, this transformation process flattens and enriches the data, making it accessible and actionable.
While structured data opens doors for deeper analysis, it rarely originates in a clean, ready-to-use format, especially in IoT environments where flexibility and efficiency in data transmission take precedence over standardization.
Why is Unstructured Data So Common in IoT?
- Devices prioritize battery life and bandwidth efficiency.
- Inconsistent naming conventions across manufacturers.
- Event-driven transmissions instead of constant updates.
Why It Matters:
- Error logs could signal early failure.
- Technician notes reveal root causes.
- Real-time readings power predictive maintenance.
Challenges in Analyzing Unstructured Data
- Volume: Petabytes per month—cloud scalability required.
- Variability: Schema-on-read tools help adapt to differences.
- Lack of Structure: Use NLP, CV, and JSON flattening.
- Integration: Metadata alignment is critical.
- Real-Time Needs: Use stream processing for immediate insight.
Making Sense of Chaos: Turning Data into Insights
- Ingest: MQTT, Kafka, REST APIs
- Store: Amazon S3, Azure Blob
- Cleanse: Spark, Databricks, Python
- Aggregate & Enrich: Join with metadata
- Model & Analyze: AI, ML, stream analytics
Real-World Application
Take, for example, a commercial HVAC system operating across a multi-building facility. Each unit streams temperature, humidity, and vibration data every few seconds. This raw telemetry is continuously ingested into a cloud-based data platform using MQTT.
From there, the data is cleansed to remove noise and standardize formats, then enriched by linking it to maintenance history and equipment metadata. As data accumulates, it is aggregated over time intervals and contextualized with environmental conditions such as outdoor weather and occupancy patterns.
An anomaly detection model, trained on historical performance data and past failure events, analyzes this information in real-time. When it detects a deviation in temperature and vibration signatures that resemble patterns from previous compressor failures, the system immediately issues an alert to facility managers.
This timely insight enables preemptive action—technicians can inspect and service the affected unit before a breakdown occurs, avoiding service disruption and reducing repair costs. It’s a tangible example of how unstructured IoT data, once refined and modeled, delivers real business value through operational foresight.
This structured approach not only brings order to the chaos of unstructured data but also enables organizations to act faster, more intelligently, and with greater confidence.
Dark Data Brought to Light
Nearly 90% of collected data is unused—this is “dark data.” With discovery, storage, cleansing, and analytics, it becomes a goldmine.
What Happens When We Use It?
- Smarter Predictions
- Faster Support
- Better Efficiency
- Stronger Compliance
Bridging the Gap with Bridgera’s Interscope AI Framework
Bridgera’s Interscope AI ingests, transforms, and analyzes all types of data with embedded AI, automated workflows, and real-time alerts.
- Proactive maintenance
- Faster decision-making
- Improved operational efficiency
The Outcome
- Fewer failures
- Increased uptime
- Better ROI
Interscope AI bridges the gap between messy, raw data and intelligent, real-time action, delivering clarity and confidence in every decision.
Final Thoughts
Data is only powerful when it’s understood. In the world of IoT, where so much is unstructured, semi-structured, or just plain messy, that understanding can’t be taken for granted. With the right tools, the right processes, and the right mindset, unstructured data can become your most valuable asset. And with Interscope AI, that future is within reach.
